| Useful electrical stroke (C.E.U.) | 150 mm |
| Resolution | Infinite |
| Protection | IP60 |
| Independent linearity (within C.E.U.) | +-0,05% |
| Displacement speed | Max 10 m/s |
| Displacement force | Max 0.5N |
| Life | More than 100 million operations |
| Vibrations | 5...2000Hz, Amax =0,75 mm amax. = 20 g |
| Shock | 50 g, 11ms. |
| Tolerance on resistance | ± 20% |
| Recommended cursor current | Less than 0,1 µA |
| Maximum cursor current | 10mA |
| Max. applicable voltage | 60 V |
| Electrical isolation | Greater than 100MOhms at 500V=, 1bar, 2s |
| Dielectric strength | Less than 100 µA at 500V~, 50Hz, 2s, 1bar |
| Dissipation at 40°C (0W at 120°C) | 3 W |
| Actual Temperature Coefficient of the output voltage | Less than 1,5ppm/°C |
| Working temperature | -30...+100°C |
| Storage temperature | -50...+120°C |
| Case material | Anodised aluminium, Nylon 66 G 25 |
| Control rod material | Stainless steel AISI 303 |
| Fixing | Selfaligning ball-joints |
| Useful electrical stroke (C.E.U.) + 1 / -0 | 150 mm |
| Theoretical electrical stroke (C.E.T.) ± 1 | C.E.U. +1 mm |
| Resistance (C.E.T.) | 6 kOhms |

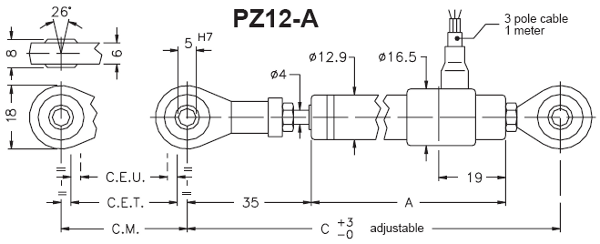

| Mechanical stroke (C.M.) | C.E.U. +5 mm |
| Case length | 227 mm |
| Minimum distance between ball-joints | 278 mm |
| Weight | 120 g |
