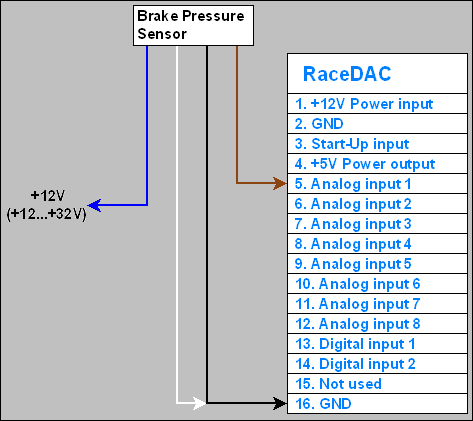

Pressure sensor has four wires; blue, brown, white and black.
Connect Brown wire to any of the eight analog inputs in RaceDAC.
Blue wire to +12V Power Supply.
White and black wire both to GND.
Note: Do not use chassis, frame or subframe grounding points.
Use direct wire; to battery (-) GND, or to RaceDAC GND.
